Indexable End Mills

APX4000_INCH


APX4000UR162SA16SA EDP:373026

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
APX4000 Square (With Center Hole)
  • Standard
  • Long
  • Extra Long
  • Screw in
  • Max.depth of cut 15mm.
  • High accuracy, high quality vertical wall.
  • Air coolant through.
Indexable
APX4000_LONG Square (With Center Hole Long Cut Length)
  • Long cutting edge
  • Air coolant through.
  • High accuracy, high quality vertical wall.
Indexable
APX4000_SHELL Square (With Center Hole Long Cut Length)
  • Shell
  • High accuracy, high quality vertical wall.
  • Air coolant through.
Indexable
APX4000_SHELL_MM Square (With Center Hole Long Cut Length)
  • Shell
  • High accuracy, high quality vertical wall.
  • Air coolant through.
Indexable

Product Information

  • Air coolant through.
  • Low resistance insert and high rigidity body.
  • Ideal chip control.
  • High wall accuracy can be produced by using this cutter and unique insert geometry.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

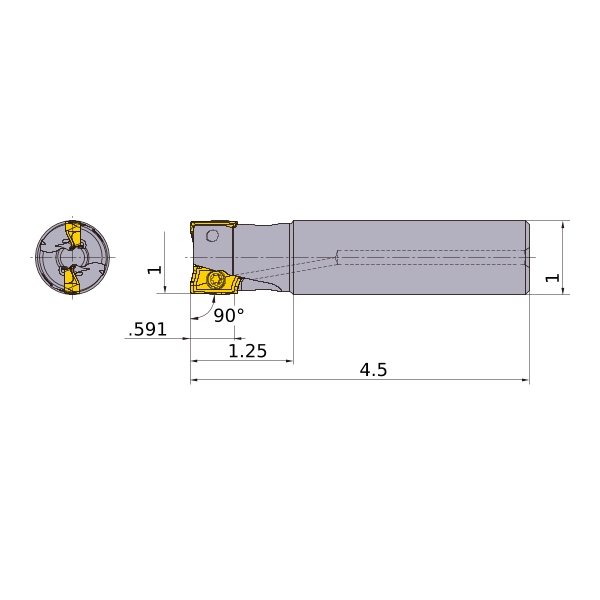

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 1
DCON 1
KAPR 90°
RMPX 11
LF 4.5
LH 1.25
APMX .591
GAMP +15°
GAMF +21°
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
2D Model (DXF)
CAD data name Download
APX4000UR162SA16SA
CAD

3D Detail Model (STP,STL)
CAD data name Download
APX4000UR162SA16SA
CAD

3D Light Model (STP,STL)
CAD data name RE Download
APX4000UR162SA16SA_IR0_016
.016 CAD CAD
APX4000UR162SA16SA_IR0_031
.031 CAD CAD
APX4000UR162SA16SA_IR0_039
.039 CAD CAD
APX4000UR162SA16SA_IR0_047
.047 CAD CAD
APX4000UR162SA16SA_IR0_063
.063 CAD CAD
APX4000UR162SA16SA_IR0_079
.079 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
