Indexable End Mills

APX4000_INCH


APX4000UR203FA20SB EDP:517667

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
APX4000 Square (With Center Hole)
  • Standard
  • Long
  • Extra Long
  • Screw in
  • Max.depth of cut 15mm.
  • High accuracy, high quality vertical wall.
  • Air coolant through.
 Indexable
APX4000_LONG Square (With Center Hole)
  • Long cutting edge
  • Air coolant through.
  • High accuracy, high quality vertical wall.
 Indexable
APX4000_SHELL Square (With Center Hole)
  • Shell
  • High accuracy, high quality vertical wall.
  • Air coolant through.
 Indexable
APX4000_SHELL_MM Square (With Center Hole)
  • Shell
  • High accuracy, high quality vertical wall.
  • Air coolant through.
 Indexable

Product Information

  • Air coolant through.
  • Low resistance insert and high rigidity body.
  • Ideal chip control.
  • High wall accuracy can be produced by using this cutter and unique insert geometry.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I

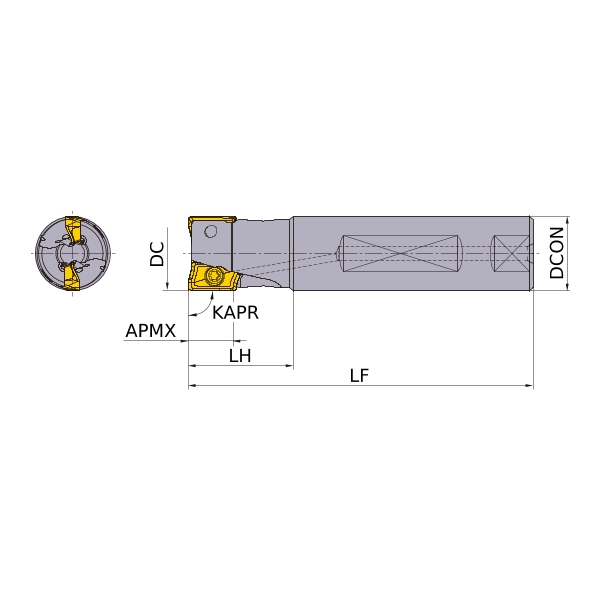

DC 1.25
DCON 1.25
KAPR 90°
RMPX 7
LF 5
LH 1.75
APMX .591
GAMP +17°
GAMF +23°
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
APX4000UR203FA20SB
CAD
