Indexable End Mills

SPX_INCH


SPX4R3224CAT50NS EDP:491840

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
SPX Square (With Center Hole Long Cut Length)
  • BT
  • Combination
  • MT50
  • SK50
  • Low cutting resistance due to the use of wavy inserts.
  • Suitable for heavy cutting due to holder rigidity.
 Indexable
SPX_SHELL Square (With Center Hole Long Cut Length)
  • Shell
  • Low cutting resistance due to the use of wavy inserts.
  • Suitable for heavy cutting due to holder rigidity.
 Indexable
SPX_SHELL_MM Square (With Center Hole Long Cut Length)
  • Shell
  • Low cutting resistance due to the use of wavy inserts.
  • Suitable for heavy cutting due to holder rigidity.
 Indexable

Product Information

  • Suitable for heavy cutting due to holder rigidity.
  • Low cutting resistance due to the use of wavy inserts.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I

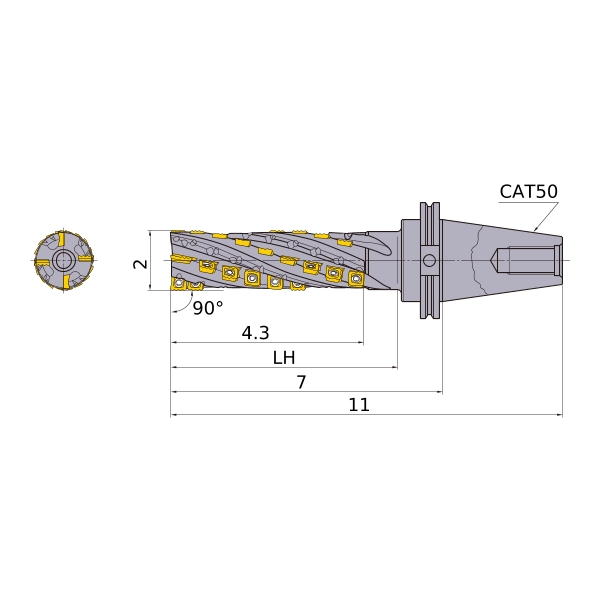

DC 2
KAPR 90°
LF 7
OAL 11
APMX 4.3
Cutting item count: CICT 24
Peripheral effective cutting edge count: ZEFP 2
Face effective cutting edge count: ZEFF 4
2D Model (DXF)
CAD data name Download
SPX4R3224CAT50NS
