Indexable End Mills

WSX445_INCH
(GENERAL CUTTING)

WSX445UR3204FA20M EDP:828609

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.

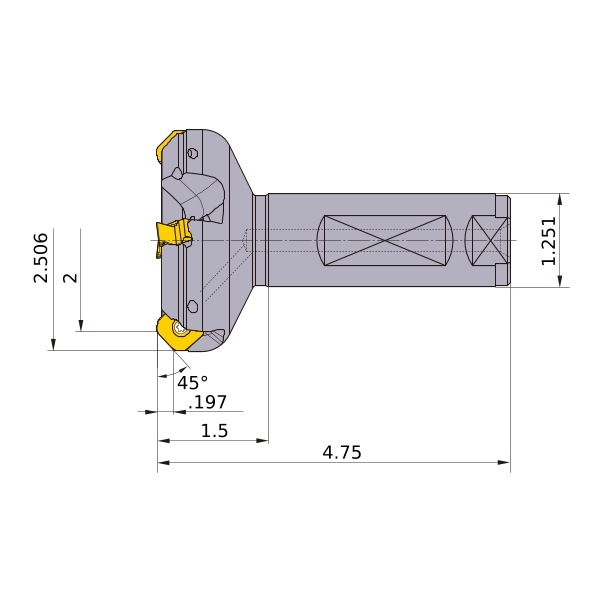

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 2
DCX 2.506
DCON 1.251
KAPR 45°
LF 4.75
LH 1.5
APMX .197
GAMP -6°
GAMF -10°
WT 1.984
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
2D Model (DXF)
CAD data name Download
WSX445UR3204FA20M
CAD

3D Detail Model (STP,STL)
CAD data name Download
WSX445UR3204FA20M
CAD

3D Light Model (STP,STL)
CAD data name RE Download
WSX445UR3204FA20M_IR0_047
.047 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
