Indexable End Mills >ARP_INCH >ARP5UPR1603AM1235

Indexable End Mills

ARP_INCH
（Round insert cutter for difficult-to-cut materials）

ARP5UPR1603AM1235 EDP:10550717

Product Information

  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I

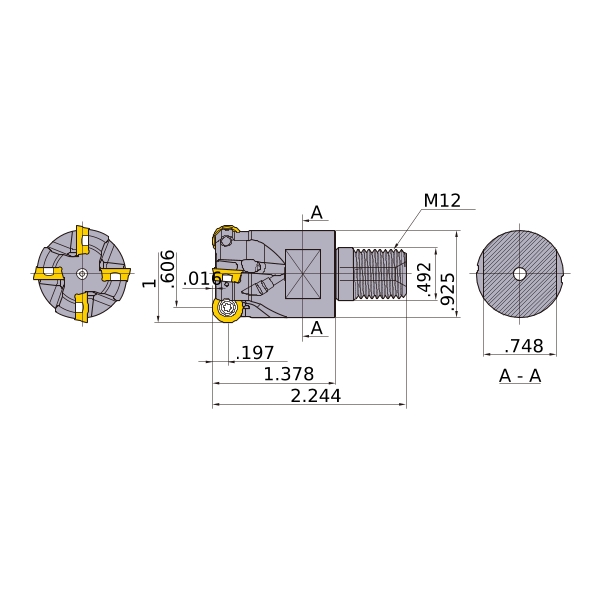

AZ .016
DC .606
DCX 1
DCON .492
DCSFMS .925
LF 1.378
OAL 2.244
S10 .748
APMX .197
GAMP +4°
GAMF -7°
WT 0.198
CRKS M12
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
