Indexable End Mills >ARP_INCH >ARP5UPR2004AM1640

Indexable End Mills

ARP_INCH
（Round insert cutter for difficult-to-cut materials）

ARP5UPR2004AM1640 EDP:10550724

Product Information

  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

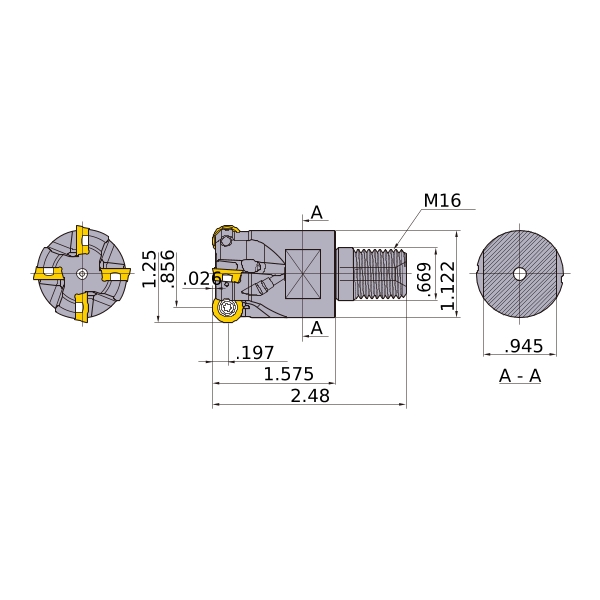

Unit of Length I
A1 .039
AZ .026
DC .856
DCX 1.25
DCON .669
DCSFMS 1.122
LF 1.575
OAL 2.48
S10 .945
APMX .197
GAMP +4°
GAMF -7°
WT 0.397
CRKS M16
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
2D Model (DXF)
CAD data name Download
ARP5UPR2004AM1640
