Indexable End Mills >ARP_INCH >ARP6UPR2003AM1640

Indexable End Mills

ARP_INCH
（Round insert cutter for difficult-to-cut materials）

ARP6UPR2003AM1640 EDP:10550731

Product Information

  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

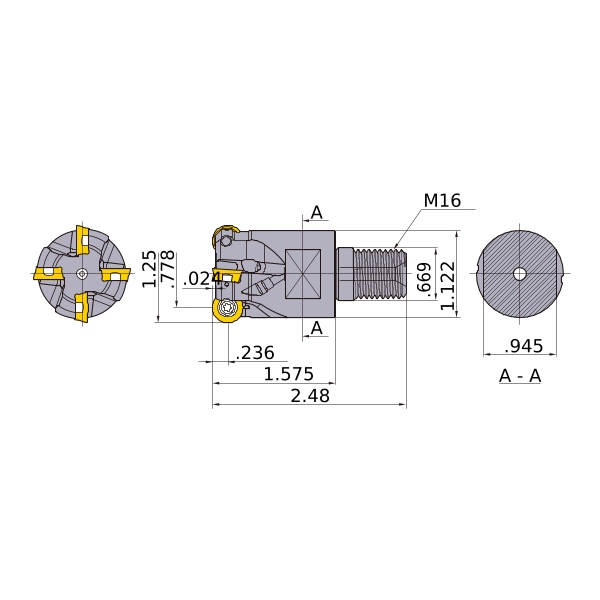

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
A1 .039
AZ .024
DC .778
DCX 1.25
DCON .669
DCSFMS 1.122
LF 1.575
OAL 2.48
S10 .945
APMX .236
GAMP +4°
GAMF -7°
WT 0.375
CRKS M16
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
ARP6UPR2003AM1640
