Indexable End Mills

VPX300_SHELL_INCH
（Multi-functional Cutter for High Efficiency Machining）

VPX300UR3.0005AA2025 EDP:10628119

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
VPX300 Square (With Center Hole)
  • Standard
  • Long
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable
VPX300_LONG Square (With Center Hole Long Cut Length)
  • Long cutting edge
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable
VPX300_SCREW-IN Square (With Center Hole)
  • Screw in
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable
VPX300_SHELL Square (With Center Hole Long Cut Length)
  • Shell
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable
VPX300_SHELL_MM Square (With Center Hole Long Cut Length)
  • Shell
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable

Product Information

  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

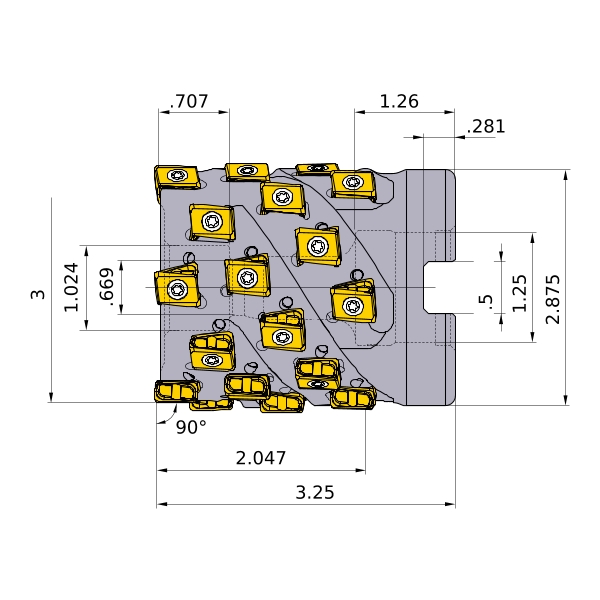

Unit of Length I
DC 3
DCON 1.25
DCSFMS 2.875
DAH .669
DCCB 1.024
KAPR 90°
RMPX 0.48°
L8 .281
LF 3.25
CBDP 1.26
LCCB .707
KWW .5
APMX 2.047
GAMP ‒6°
GAMF ‒22.5°
WT 4.034
Cutting item count: CICT 25
Peripheral effective cutting edge count: ZEFP 5
Face effective cutting edge count: ZEFF 5
