Indexable End Mills

WJX09_INCH
（Double-sided Insert Type High Feed Radius Milling Cutter）

WJX09UR2003SA20L EDP:10618783

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
WJX09 Radius Type
  • Standard
  • Double sided Z Geometry.
  • Smooth chip discharge.
 Indexable
WJX09_SCREW-IN Radius Type
  • Screw in
  • Double sided Z Geometry.
  • Smooth chip discharge.
 Indexable

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

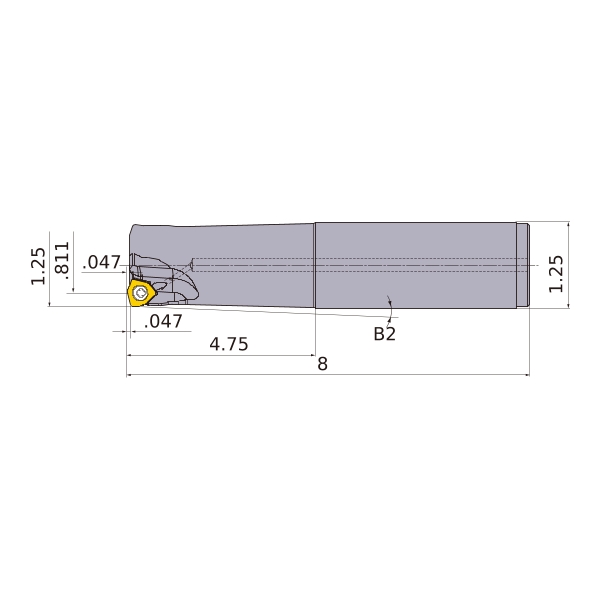

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
AZ .047
DC .811
DCX 1.25
DCON 1.25
RMPX 4.3
LF 8
LH 4.75
APMX .047
GAMP -6
GAMF -11
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
RPMX 27500
2D Model (DXF)
CAD data name Download
WJX09UR2003SA20L
CAD
