External Cutting

CSVH_INCH


CSVHL-062 EDP:337316

Product Information

  • For cam type tool posts.
  • Single holder for front turning,back turning,grooving,threading and cutting off operations.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI CSVH062MX
Sales unit 1
Hand L
Stock
Unit of Length I

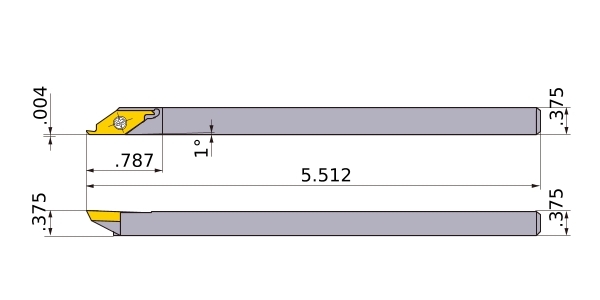

B .375
LF 5.512
LH .787
H .375
HF .375
S10 .004
Peripheral effective cutting edge count: ZEFP 1
Insert Number CSVT
2D Model (DXF)
CAD data name Download
CSVHL-062
