External Cutting

MDJN_INCH


MDJNL-204D EDP:102868

Product Information

  • Negative rake clamp and locking pin toolholders.
  • Insert securely held by a shim pin and clamp bridge.
  • Index operation is easy to perform.
  • (Opt.) Single clamp available as clamp on or pin lock holder.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Stock

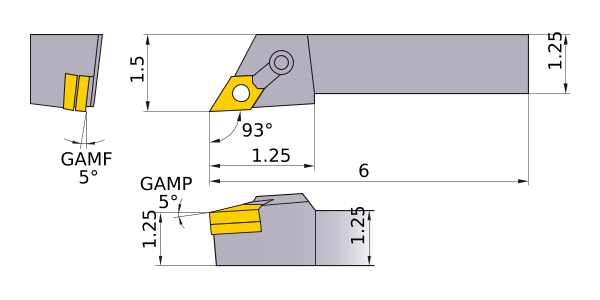

Unit of Length I
B 1.25
KAPR 93°
LF 6
LH 1.25
WF 1.5
H 1.25
HF 1.25
Peripheral effective cutting edge count: ZEFP 1
Insert Number DN__43

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
