External Cutting

MSSN_INCH


MSSNR-83 EDP:103246

Product Information

  • (Opt.) Single clamp available as clamp on or pin lock holder.
  • Negative rake clamp and locking pin toolholders.
  • Insert securely held by a shim pin and clamp bridge.
  • Index operation is easy to perform.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock

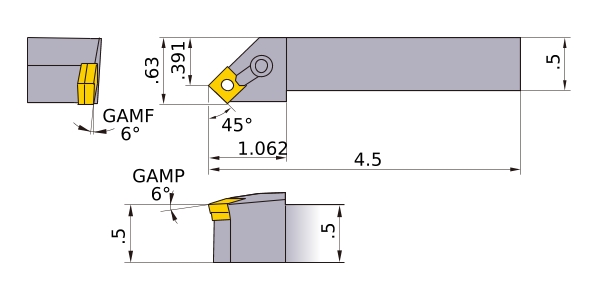

Unit of Length I
B .5
KAPR 45°
LF 4.5
LH 1.062
WF .63
H .5
HF .5
WF2 .391
Peripheral effective cutting edge count: ZEFP 1
Insert Number SN__32

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
