External Cutting

MSSN_INCH


MSSNL-205D EDP:103232

Product Information

  • (Opt.) Single clamp available as clamp on or pin lock holder.
  • Negative rake clamp and locking pin toolholders.
  • Insert securely held by a shim pin and clamp bridge.
  • Index operation is easy to perform.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Stock

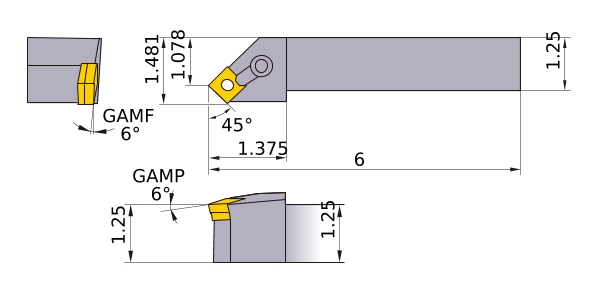

Unit of Length I
B 1.25
KAPR 45°
LF 6
LH 1.375
WF 1.481
H 1.25
HF 1.25
WF2 1.078
Peripheral effective cutting edge count: ZEFP 1
Insert Number SN__54

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
