External Cutting

MSSN_INCH


MSSNL-206D EDP:103233

Product Information

  • (Opt.) Single clamp available as clamp on or pin lock holder.
  • Negative rake clamp and locking pin toolholders.
  • Insert securely held by a shim pin and clamp bridge.
  • Index operation is easy to perform.

The actual product may differ from the displayed image.

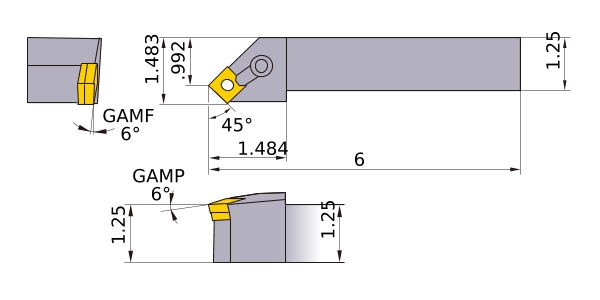

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI MSSNL206D
Sales unit 1
Hand L
Stock
Unit of Length I
B 1.25
KAPR 45°
LF 6
LH 1.484
WF 1.483
H 1.25
HF 1.25
WF2 .992
Peripheral effective cutting edge count: ZEFP 1
Insert Number SN__64
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition

  • Turning Insert

  • Spare Parts
