External Cutting

MSSN_INCH

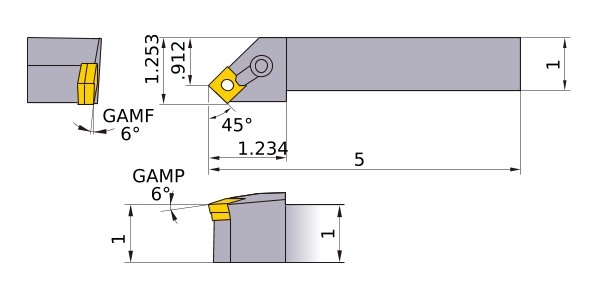

MSSNL-164C EDP:103230

Product Information

  • (Opt.) Single clamp available as clamp on or pin lock holder.
  • Negative rake clamp and locking pin toolholders.
  • Insert securely held by a shim pin and clamp bridge.
  • Index operation is easy to perform.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Stock
Unit of Length I
B 1
KAPR 45°
LF 5
LH 1.234
WF 1.253
H 1
HF 1
WF2 .912
Peripheral effective cutting edge count: ZEFP 1
Insert Number SN__43

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
