External Cutting

MTAN_INCH


MTANL-204 EDP:103302

Product Information

  • Negative rake clamp and locking pin toolholders.
  • Insert securely held by a shim pin and clamp bridge.
  • Index operation is easy to perform.
  • (Opt.) Single clamp available as clamp on or pin lock holder.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Stock

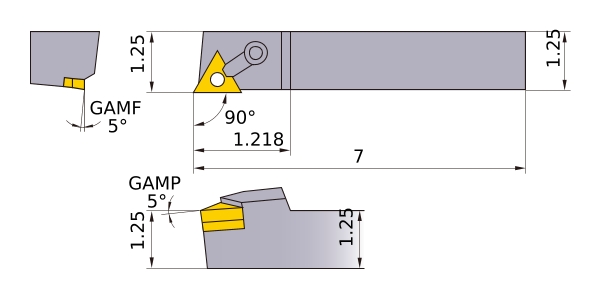

Unit of Length I
B 1.25
KAPR 90°
LF 7
LH 1.218
WF 1.25
H 1.25
HF 1.25
Peripheral effective cutting edge count: ZEFP 1
Insert Number TN__43

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
