External Cutting

MTEN_INCH


MTENN-865 EDP:103335

Product Information

  • Negative rake clamp and locking pin toolholders.
  • Insert securely held by a shim pin and clamp bridge.
  • Index operation is easy to perform.
  • (Opt.) Single clamp available as clamp on or pin lock holder.

The actual product may differ from the displayed image.

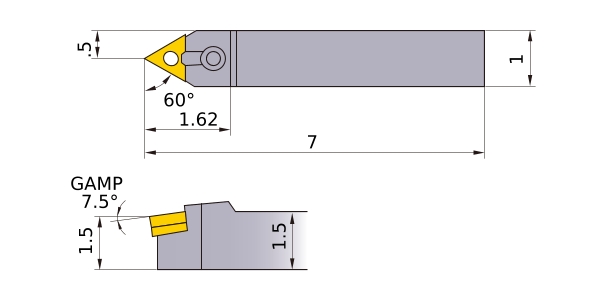

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI MTENN865E
Sales unit 1
Hand N
Stock
Unit of Length I
B 1
KAPR 60°
LF 7
LH 1.62
WF .5
H 1.5
HF 1.5
Peripheral effective cutting edge count: ZEFP 1
Insert Number TN__54

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
