External Cutting

MVJN_INCH


MVJNR-123B EDP:103550

Product Information

  • Negative rake clamp and locking pin toolholders.
  • Insert securely held by a shim pin and clamp bridge.
  • Index operation is easy to perform.
  • (Opt.) Single clamp available as clamp on or pin lock holder.

The actual product may differ from the displayed image.

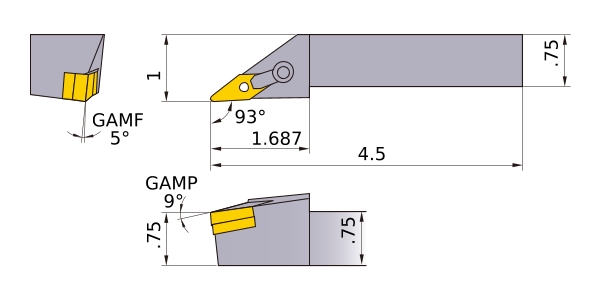

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI MVJNR123B
Sales unit 1
Hand R
Stock
Unit of Length I
B .75
KAPR 93°
LF 4.5
LH 1.687
WF 1
H .75
HF .75
Peripheral effective cutting edge count: ZEFP 1
Insert Number VN__33

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
