External Cutting

SCAC-SM_INCH


SCACR-103SM EDP:506360

Product Information

  • For gang type tool posts.
  • High accuracy INCH standard indexable insert series.
  • Screw-on type.

The actual product may differ from the displayed image.

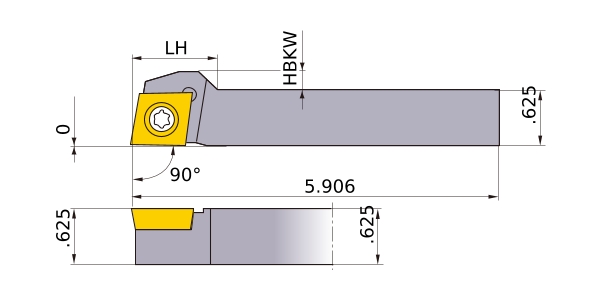

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI SCACR103DX-SM
Sales unit 1
Hand R
Stock
Unit of Length I
B .625
KAPR 90°
LF 5.906
H .625
HF .625
WF2 0
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__32.5
2D Model (DXF)
CAD data name Download
SCACR-103SM
CAD

3D Detail Model (STP,STL)
CAD data name Download
SCACR-103SM
CAD

3D Light Model (STP,STL)
CAD data name RE Download
SCACR-103SM_IR0_008
.008 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
