External Cutting

SCLC-SM_INCH


SCLCL-103SM EDP:506394

Product Information

  • For gang type tool posts.
  • High accuracy INCH standard indexable insert series.
  • Screw-on type.

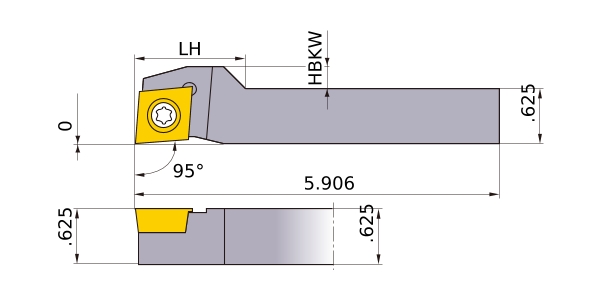

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SCLCL103D-SM
Sales unit 1
Hand L
Stock
Unit of Length I
B .625
KAPR 95°
LF 5.906
H .625
HF .625
WF2 0
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__32.5
2D Model (DXF)
CAD data name Download
SCLCL-103SM
