External Cutting

SCLC_INCH


SCLCR-083 EDP:104524

Product Information

  • Small shank toolholder system using a 5° , 7° and 11° positive inserts retained by screw-on system.

The actual product may differ from the displayed image.

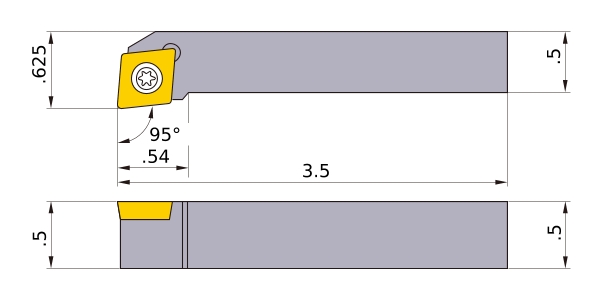

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SCLCR083X
Sales unit 1
Hand R
Stock
Unit of Length I
B .5
KAPR 95°
LF 3.5
LH .54
WF .625
H .5
HF .5
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__32.5
2D Model (DXF)
CAD data name Download
SCLCR-083
