External Cutting

SCLC_INCH


SCLCR-124 EDP:104528

Product Information

  • Small shank toolholder system using a 5° , 7° and 11° positive inserts retained by screw-on system.

The actual product may differ from the displayed image.

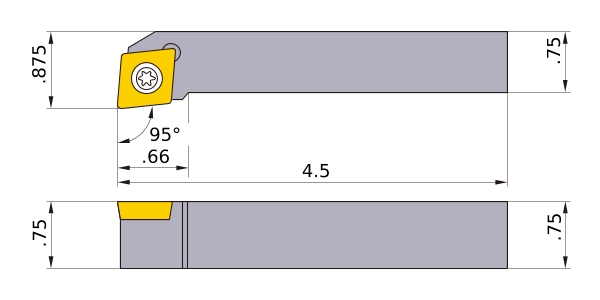

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SCLCR124B
Sales unit 1
Hand R
Stock
Unit of Length I
B .75
KAPR 95°
LF 4.5
LH .66
WF .875
H .75
HF .75
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__43
