External Cutting

SDJC-SM_INCH


SDJCR-083SM EDP:337324

Product Information

  • Screw-on type.
  • For gang type tool posts.
  • High accuracy INCH standard indexable insert series.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SDJCR083DX-SM
Sales unit 1
Hand R
Stock
Unit of Length I

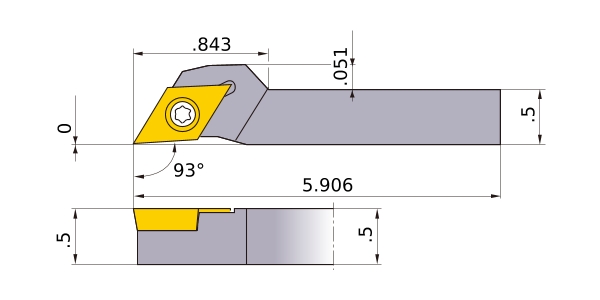

B .5
KAPR 93°
LF 5.906
LH .843
HBKW .051
H .5
HF .5
WF2 0
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__32.5
2D Model (DXF)
CAD data name Download
SDJCR-083SM
CAD
