External Cutting

SDJE_INCH


SDJEL-104 EDP:104596

Product Information

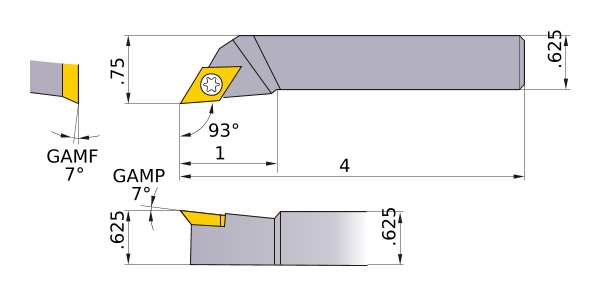

  • Shank size .625 square thru 1.000 square with screw-on method.
  • Suitable for finishing aluminum or non-ferrous metals and for chatter control on small diameters.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SDJEL104A
Sales unit 1
Hand L
Stock
Unit of Length I
B .625
KAPR 93°
LF 4
LH 1
WF .75
H .625
HF .625
Peripheral effective cutting edge count: ZEFP 1
Insert Number DE__43
2D Model (DXF)
CAD data name Download
SDJEL-104
