External Cutting

SDNC-SM_INCH


SDNCL-063SM EDP:337383

Product Information

  • For gang type tool posts.
  • High accuracy INCH standard indexable insert series.
  • Screw-on type.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SDNCL063CX-SM
Sales unit 1
Hand L
Stock
Unit of Length I

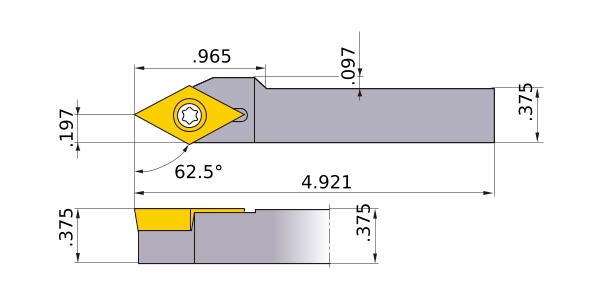

B .375
KAPR 62.5°
LF 4.921
LH .965
HBKW .097
H .375
HF .375
WF2 .197
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__32.5
