SDXCL-062 EDP:104612

Product Information

  • Small shank toolholder system using a 5° , 7° and 11° positive inserts retained by screw-on system.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SDXCL062X
Sales unit 1
Hand L
Stock
Unit of Length I

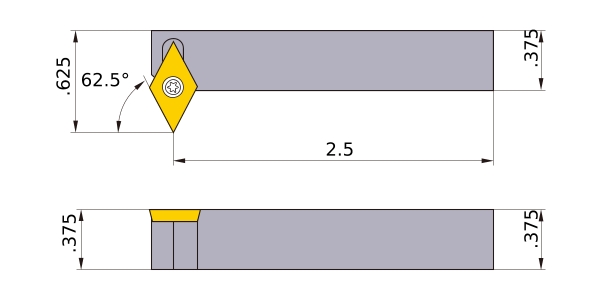

B .375
KAPR 62.5°
LF 2.5
WF .625
H .375
HF .375
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__21.5
2D Model (DXF)
CAD data name Download
SDXCL-062
