External Cutting

SSSC_INCH


SSSCR-124 EDP:106463

Product Information

  • Small shank toolholder system using a 5° , 7° and 11° positive inserts retained by screw-on system.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SSSCR124B
Sales unit 1
Hand R
Stock

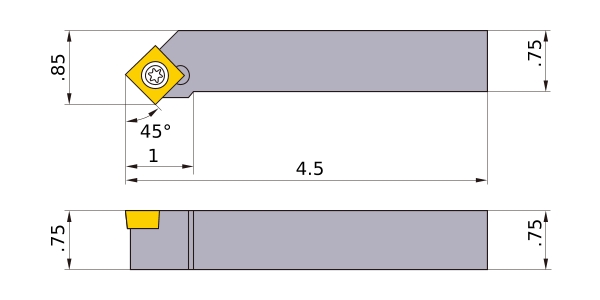

Unit of Length I
B .75
KAPR 45°
LF 4.5
LH 1
WF .85
H .75
HF .75
Peripheral effective cutting edge count: ZEFP 1
Insert Number SC__43
2D Model (DXF)
CAD data name Download
SSSCR-124
CAD
