External Cutting

STFC_INCH


STFCL-102.5 EDP:106470

Product Information

  • Small shank toolholder system using a 5° , 7° and 11° positive inserts retained by screw-on system.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI STFCL102.5A
Sales unit 1
Hand L
Stock
Unit of Length I

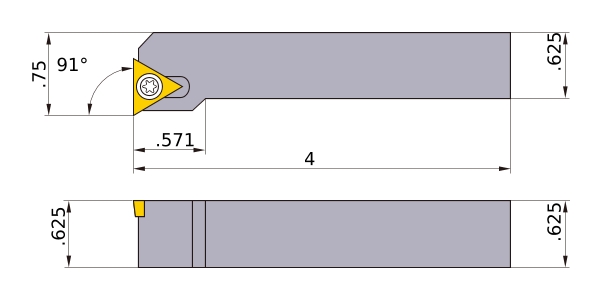

B .625
KAPR 91°
LF 4
LH .571
WF .75
H .625
HF .625
Peripheral effective cutting edge count: ZEFP 1
Insert Number TC__2.52
2D Model (DXF)
CAD data name Download
STFCL-102.5
