External Cutting

STFE_INCH


STFER-163 EDP:106484

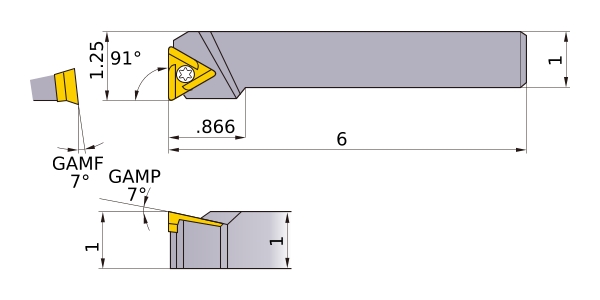

Product Information

  • Shank size .625 square thru 1.000 square with screw-on method.
  • Suitable for finishing aluminum or non-ferrous metals and for chatter control on small diameters.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI STFER163D
Sales unit 1
Hand R
Stock
Unit of Length I
B 1
KAPR 91°
LF 6
LH .866
WF 1.25
H 1
HF 1
Peripheral effective cutting edge count: ZEFP 1
Insert Number TE__32
2D Model (DXF)
CAD data name Download
STFER-163
