External Cutting

STFE_INCH

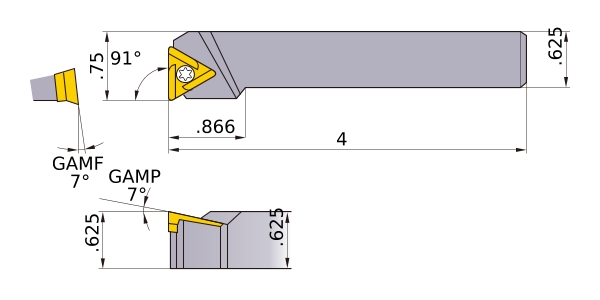

STFER-103 EDP:106482

Product Information

  • Shank size .625 square thru 1.000 square with screw-on method.
  • Suitable for finishing aluminum or non-ferrous metals and for chatter control on small diameters.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
B .625
KAPR 91°
LF 4
LH .866
WF .75
H .625
HF .625
Peripheral effective cutting edge count: ZEFP 1

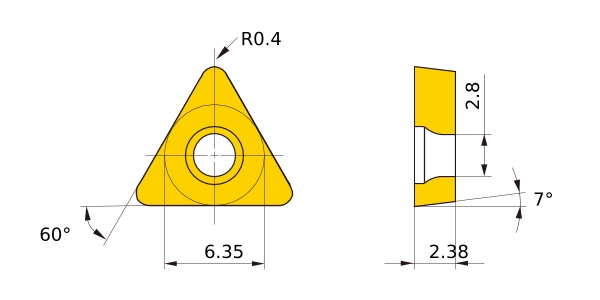

Insert Number TE__32
2D Model (DXF)
CAD data name Download
STFER-103
CAD

3D Detail Model (STP,STL)
CAD data name Download
STFER-103
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
