External Cutting

SVJC_INCH


SVJCL-083 EDP:106534

Product Information

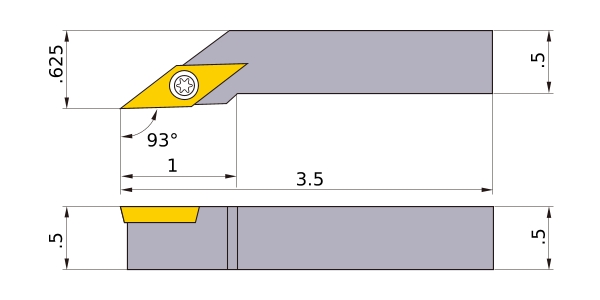

  • Small shank toolholder system using a 5° , 7° and 11° positive inserts retained by screw-on system.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SVJCL083X
Sales unit 1
Hand L
Stock
Unit of Length I
B .5
KAPR 93°
LF 3.5
LH 1
WF .625
H .5
HF .5
Peripheral effective cutting edge count: ZEFP 1
Insert Number VC__33
2D Model (DXF)
CAD data name Download
SVJCL-083
