External Cutting

SVVB-SM_INCH


SVVBR-062SM EDP:337682

Product Information

  • For gang type tool posts.
  • High accuracy INCH standard indexable insert series.
  • Screw-on type.

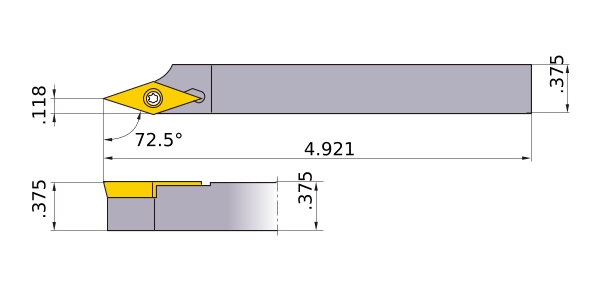

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SVVBR062CX-SM
Sales unit 1
Hand R
Stock
Unit of Length I
B .375
KAPR 72.5°
LF 4.921
H .375
HF .375
WF2 .118
Peripheral effective cutting edge count: ZEFP 1
Insert Number VB__22
2D Model (DXF)
CAD data name Download
SVVBR-062SM
