External Cutting

SWLC_INCH


SWLCR-062 EDP:106570

Product Information

  • Small shank toolholder system using a 5° , 7° and 11° positive inserts retained by screw-on system.

The actual product may differ from the displayed image.

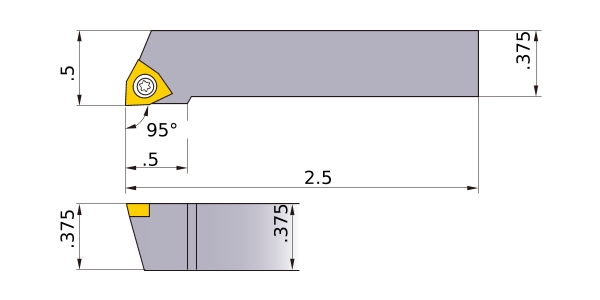

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SWLCR062X
Sales unit 1
Hand R
Stock
Unit of Length I
B .375
KAPR 95°
LF 2.5
LH .5
WF .5
H .375
HF .375
Peripheral effective cutting edge count: ZEFP 1
Insert Number WC__21.5
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition

  • Turning Insert

  • Spare Parts
