External Cutting

DDJN_INCH


DDJNR-123 EDP:371143

Product Information

  • New double clamp type.
  • Holds inserts securely.
  • Economical negative insert.
  • Recommended with CBN grade insert.
  • Excellent cutting edge tolerance.

The actual product may differ from the displayed image.

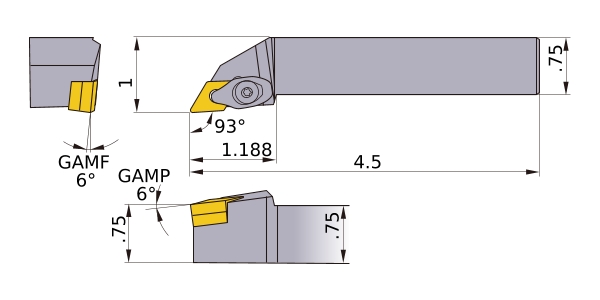

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI DDJNR123B
Sales unit 1
Hand R
Stock
Unit of Length I
B .75
KAPR 93°
LF 4.5
LH 1.188
WF 1
H .75
HF .75
Peripheral effective cutting edge count: ZEFP 1
Insert Number DN__33
2D Model (DXF)
CAD data name Download
DDJNR-123
CAD

3D Detail Model (STP,STL)
CAD data name Download
DDJNR-123
CAD

3D Light Model (STP,STL)
CAD data name RE Download
DDJNR-123_IR0_031
.031 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
