External Cutting

DDJN_INCH


DDJNR-204 EDP:371696

Product Information

  • New double clamp type.
  • Holds inserts securely.
  • Economical negative insert.
  • Recommended with CBN grade insert.
  • Excellent cutting edge tolerance.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR

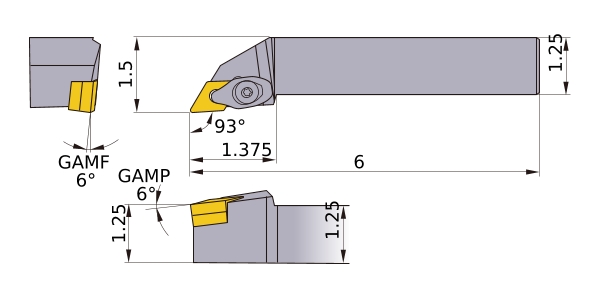

ANSI DDJNR204D
Sales unit 1
Hand R
Stock
Unit of Length I

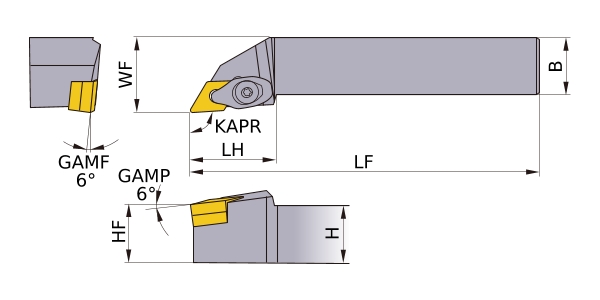

B 1.25
KAPR 93°
LF 6
LH 1.375
WF 1.5
H 1.25
HF 1.25
Peripheral effective cutting edge count: ZEFP 1
Insert Number DN__43
2D Model (DXF)
CAD data name Download
DDJNR-204
