External Cutting

DDJN_INCH


DDJNL-204 EDP:371688

Product Information

  • New double clamp type.
  • Holds inserts securely.
  • Economical negative insert.
  • Recommended with CBN grade insert.
  • Excellent cutting edge tolerance.

The actual product may differ from the displayed image.

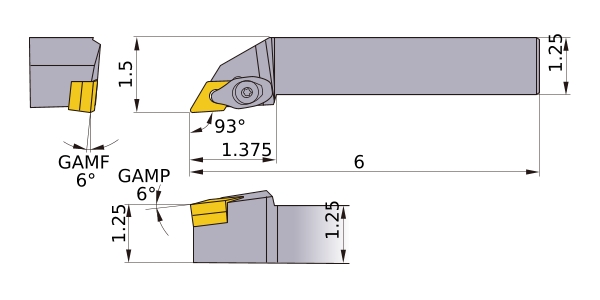

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI DDJNL204D
Sales unit 1
Hand L
Stock
Unit of Length I
B 1.25
KAPR 93°
LF 6
LH 1.375
WF 1.5
H 1.25
HF 1.25
Peripheral effective cutting edge count: ZEFP 1
Insert Number DN__43
2D Model (DXF)
CAD data name Download
DDJNL-204
CAD

3D Detail Model (STP,STL)
CAD data name Download
DDJNL-204
CAD

3D Light Model (STP,STL)
CAD data name RE Download
DDJNL-204_IR0_031
.031 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
