External Cutting

DSDN_INCH


DSDNN-124 EDP:371178

Product Information

  • Excellent cutting edge tolerance.
  • Economical negative insert.
  • Recommended with CBN grade insert.
  • New double clamp type.
  • Holds inserts securely.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand N
Stock

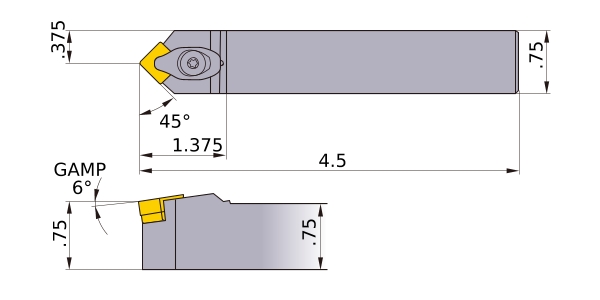

Unit of Length I
B .75
KAPR 45°
LF 4.5
LH 1.375
WF .375
H .75
HF .75
Peripheral effective cutting edge count: ZEFP 1
Insert Number SN__43
2D Model (DXF)
CAD data name Download
DSDNN-124
CAD

3D Detail Model (STP,STL)
CAD data name Download
DSDNN-124
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
