External Cutting

DTFN_INCH


DTFNL-123 EDP:371223

Product Information

  • New double clamp type.
  • Holds inserts securely.
  • Excellent cutting edge tolerance.
  • Economical negative insert.
  • Recommended with CBN grade insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI DTFNL123B
Sales unit 1
Hand L
Stock
Unit of Length I
B .75

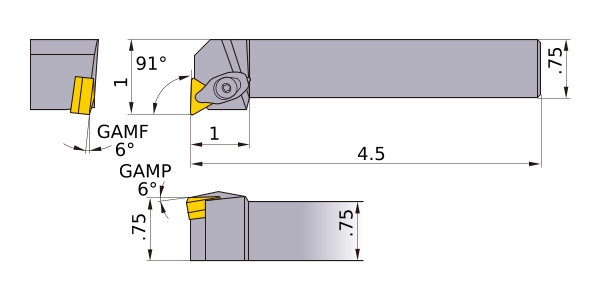

KAPR 91°
LF 4.5
LH 1
WF 1
H .75
HF .75
Peripheral effective cutting edge count: ZEFP 1
Insert Number TN__33
2D Model (DXF)
CAD data name Download
DTFNL-123
CAD
