External Cutting

DTGN_INCH


DTGNL-244 EDP:430131

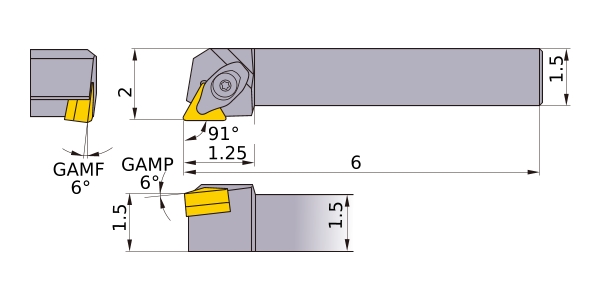

Product Information

  • New double clamp type.
  • Holds inserts securely.
  • Excellent cutting edge tolerance.
  • Economical negative insert.
  • Recommended with CBN grade insert.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Stock
Unit of Length I
B 1.5
KAPR 91°
LF 6
LH 1.25
WF 2
H 1.5
HF 1.5
Peripheral effective cutting edge count: ZEFP 1
Insert Number TN__43
2D Model (DXF)
CAD data name Download
DTGNL-244
CAD

3D Detail Model (STP,STL)
CAD data name Download
DTGNL-244
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
