External Cutting

DVVN_INCH


DVVNN-163 EDP:371611

Product Information

  • New double clamp type.
  • Recommended with CBN grade insert.
  • Holds inserts securely.
  • Excellent cutting edge tolerance.
  • Economical negative insert.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand N
Stock
Unit of Length I

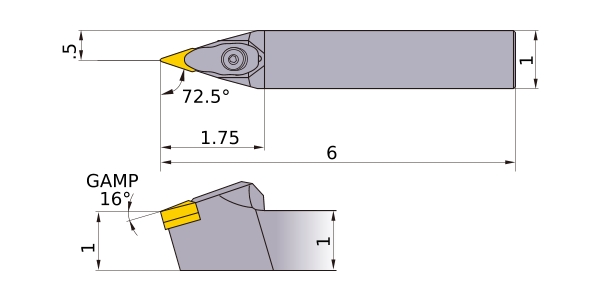

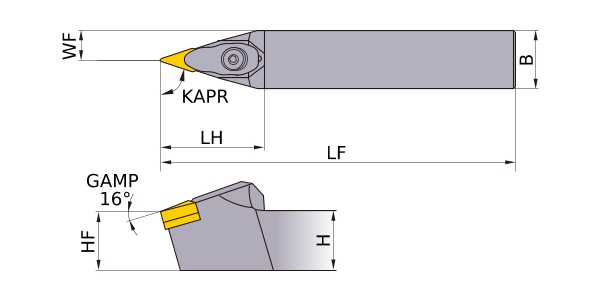

B 1
KAPR 72.5°
LF 6
LH 1.75
WF .5
H 1
HF 1
Peripheral effective cutting edge count: ZEFP 1
Insert Number VN__33
2D Model (DXF)
CAD data name Download
DVVNN-163
CAD

3D Detail Model (STP,STL)
CAD data name Download
DVVNN-163
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
