External Cutting

DWLN_INCH


DWLNR-163 EDP:371637

Product Information

  • New double clamp type.
  • Holds inserts securely.
  • Excellent cutting edge tolerance.
  • Economical negative insert.
  • Recommended with CBN grade insert.

The actual product may differ from the displayed image.

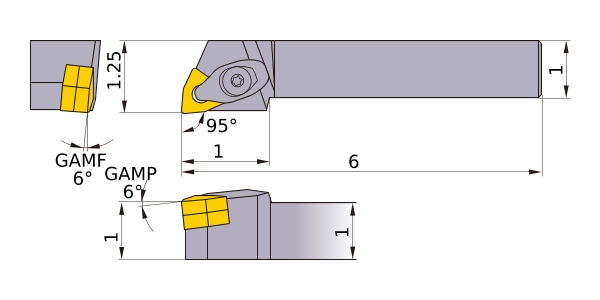

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI DWLNR163D
Sales unit 1
Hand R
Stock
Unit of Length I
B 1
KAPR 95°
LF 6
LH 1
WF 1.25
H 1
HF 1
Peripheral effective cutting edge count: ZEFP 1
Insert Number WN__33
2D Model (DXF)
CAD data name Download
DWLNR-163
CAD

3D Detail Model (STP,STL)
CAD data name Download
DWLNR-163
CAD

3D Light Model (STP,STL)
CAD data name RE Download
DWLNR-163_IR0_031
.031 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
