External Cutting

CTBH_INCH


CTBHR-062 EDP:337762

Product Information

  • For gang type tool posts.
  • Screw-on type.

The actual product may differ from the displayed image.

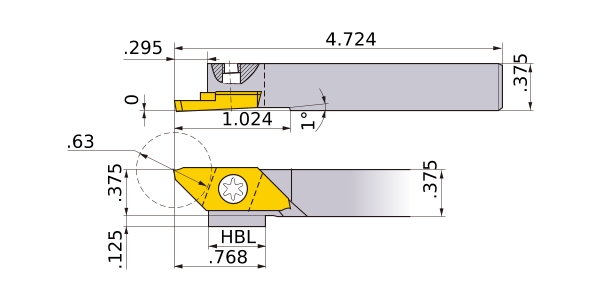

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI CTBHR062BX
Sales unit 1
Hand R
Stock
Unit of Length I
CUTDIA .63
B .375
LF 4.724
LH .768
CDX .295
H .375
HF .375
HBH .125
WF2 .133
S10 1.024
Peripheral effective cutting edge count: ZEFP 1
Insert Number BTBT
2D Model (DXF)
CAD data name Download
CTBHR-062
CAD
