External Cutting

CTBH_INCH


CTBHL-102 EDP:506571

Product Information

  • For gang type tool posts.
  • Screw-on type.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI CTBHL102BX
Sales unit 1
Hand L
Stock

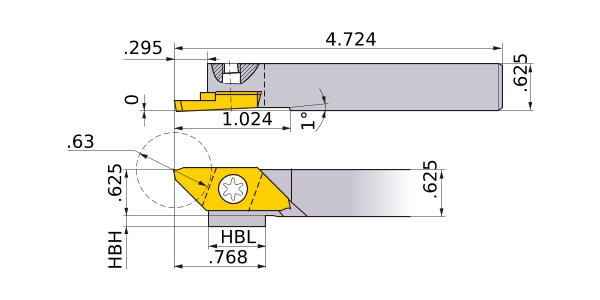

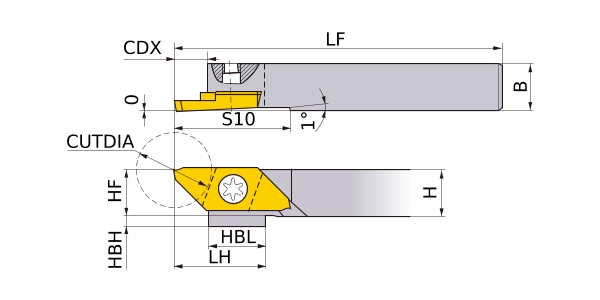

Unit of Length I
CUTDIA .63
B .625
LF 4.724
LH .768
CDX .295
H .625
HF .625
WF2 .133
S10 1.024
Peripheral effective cutting edge count: ZEFP 1
Insert Number BTBT
2D Model (DXF)
CAD data name Download
CTBHL-102
