External Cutting

CTBH_INCH


CTBHR-102 EDP:506562

Product Information

  • For gang type tool posts.
  • Screw-on type.

The actual product may differ from the displayed image.

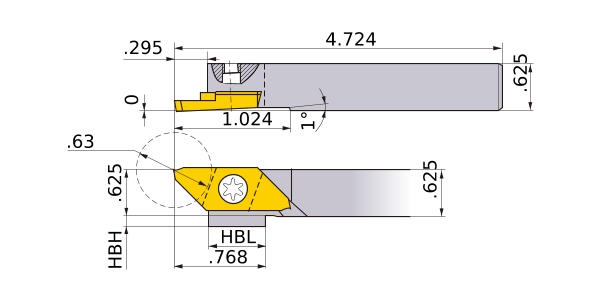

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI CTBHR102BX
Sales unit 1
Hand R
Stock
Unit of Length I
CUTDIA .63
B .625
LF 4.724
LH .768
CDX .295
H .625
HF .625
WF2 .133
S10 1.024
Peripheral effective cutting edge count: ZEFP 1
Insert Number BTBT
2D Model (DXF)
CAD data name Download
CTBHR-102
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
