External Cutting

DSKN_INCH


DSKNR-124 EDP:430001

Product Information

  • Holds inserts securely.
  • New double clamp type.
  • Excellent cutting edge tolerance.
  • Economical negative insert.
  • Recommended with CBN grade insert.

The actual product may differ from the displayed image.

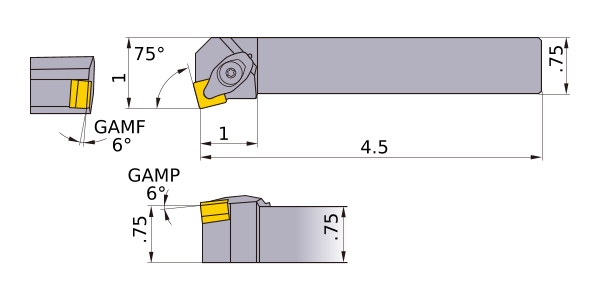

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI DSKNR124B
Sales unit 1
Hand R
Stock
Unit of Length I
B .75
KAPR 75°
LF 4.5
LH 1
WF 1
H .75
HF .75
Peripheral effective cutting edge count: ZEFP 1
Insert Number SN__43
2D Model (DXF)
CAD data name Download
DSKNR-124
CAD

3D Detail Model (STP,STL)
CAD data name Download
DSKNR-124
CAD

3D Light Model (STP,STL)
CAD data name RE Download
DSKNR-124_IR0_031
.031 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
