External Cutting

SXZC_INCH


SXZCL-122 EDP:467719

Product Information

  • The cycle time can be reduced due to only one holder.
  • 25° rhombic insert for profiling and face relief.
  • Machine 300° of a sphere.
  • Machine face relief to 60° angle.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SXZCL122B
Sales unit 1
Hand L
Stock
Unit of Length I

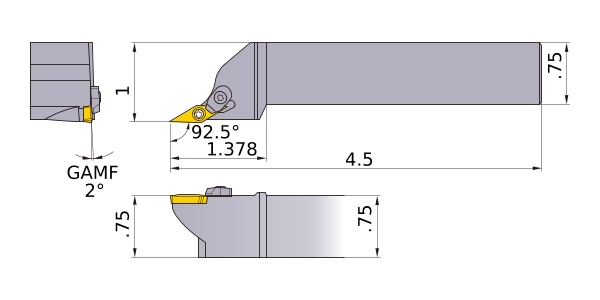

B .75
KAPR 92.5°
LF 4.5
LH 1.378
WF 1
H .75
HF .75
Peripheral effective cutting edge count: ZEFP 1
Insert Number XC__22
