External Cutting

SVLP-SM_INCH


SVLPL-102SM EDP:527398

Product Information

  • The 35 degree rhombic insert with 11 degree positive rake angle demonstrates excellent cutting performance for recessing and profiling small work pieces.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

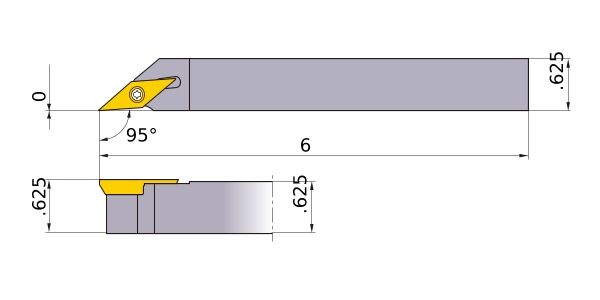

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SVLPL102D-SM
Sales unit 1
Hand L
Stock
Unit of Length I
B .625
KAPR 95°
LF 6
H .625
HF .625
WF2 0
Peripheral effective cutting edge count: ZEFP 1
Insert Number VP__22
2D Model (DXF)
CAD data name Download
SVLPL-102SM
CAD
