External Cutting

SVJC-SM_INCH


SVJCR-082.5B-SM EDP:10580271

Product Information

  • For gang type tool posts.
  • High accuracy INCH standard indexable insert series.
  • Screw-on type.

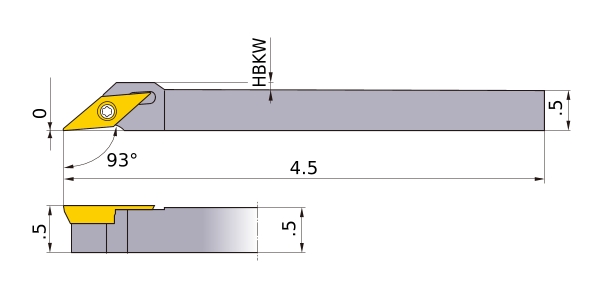

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SVJCR-082.5B-SM
Sales unit 1
Hand R
Stock
Unit of Length I
B .5
KAPR 93°
LF 4.5
H .5
HF .5
WF2 0
Peripheral effective cutting edge count: ZEFP 1
Insert Number VC__2.52
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Turning Insert

  • Spare Parts
