External Cutting


SVJCL-082B-SM EDP:10580165

Product Information

  • For gang type tool posts.
  • High accuracy INCH standard indexable insert series.
  • Screw-on type.

The actual product may differ from the displayed image.

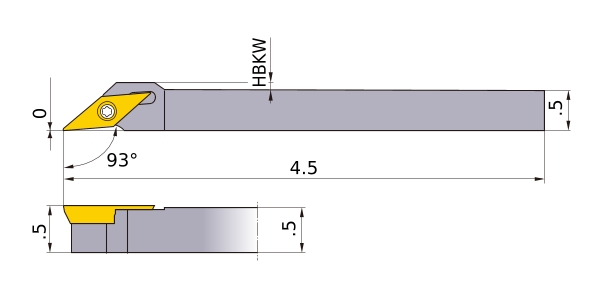

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Unit of Length I
B .5
KAPR 93°
LF 4.5
H .5
HF .5
WF2 0
Peripheral effective cutting edge count: ZEFP 1
Insert Number VC__22


:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
