Face Cutter

ASX400_INCH
(GENERAL CUTTING)

ASX400R0205 EDP:198758

Product Information

  • Economical due to the use of 4 cutting edges.
  • Low resistance due to the 3D designed of the curved cutting edge.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock

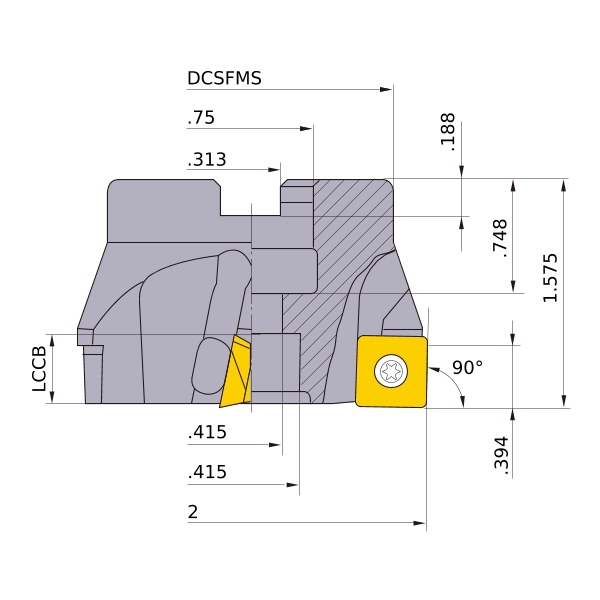

Unit of Length I
DC 2
DCON .75
DAH .415
DCCB .415
KAPR 90°
L8 .188
LF 1.575
CBDP .748
KWW .313
APMX .394
GAMP +11°
GAMF -11°
WT 0.8
Peripheral effective cutting edge count: ZEFP 5
RPMX 18000
2D Model (DXF)
CAD data name Download
ASX400R0205
CAD

3D Detail Model (STP,STL)
CAD data name Download
ASX400R0205
CAD

3D Light Model (STP,STL)
CAD data name RE Download
ASX400R0205_IR0_031
.031 CAD CAD
ASX400R0205_IR0_079
.079 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
